CTEC supply a wide range of racks to
suit almost any application. We can source standard footprint
and height configurations for 19", ETSI, TEP1E and MEP
racks. Where available, we can offer plain, vented or clear
doors, plain or vented side panels and where applicable variable
position mounts. We are also able to consider custom designed
rack features, such as access ports, split doors and fibre
or cable management systems.

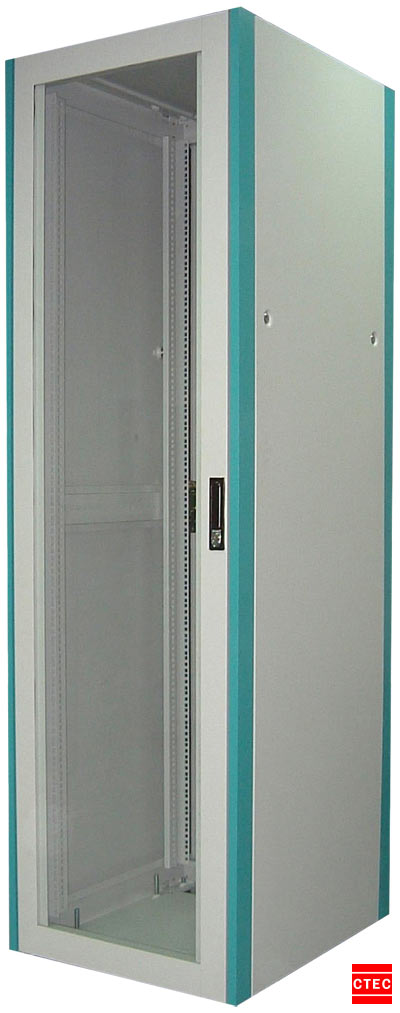

19"
• 1.7mtr, 2.2mtr or 2.6mtr heights.
• 600(W) x 600mm(D), 600(W) x
800mm(D), 800(W) x 600mm(D) footprints.
• Plain, vented or clear doors
(front and/or rear).
• Plain or vented side panels.
• Vertical front mount pitch
to "U" standard (= 1.75" or 44.45mm).
ETSI (E300)
• 1.6mtr (58SU), 2.2mtr (82SU)
or 2.6mtr (98SU) heights (mounting space
in brackets).
• Developed to meet the requirements
of ETS 300-119.
• 600(W) x 300(D) footprint.
• 150mm(W) cable duct options
for left and/or right sides (by request).
• Polycarbonate glazes, solid
or ventilated door options.
• Vertical front mount pitch to "SU"
standard (= 25mm).
TEP1E
• 2.2mtr, 2.6mtr heights.
• 600(W) x 300(D) footprint.
• 150mm(W) cable duct options for
left and/or right sides of the 600(W)
x 300(D) footprint rack.
• Vertical rear mount pitch to "VU"
standard (= 1.2" or 30.48mm).
MEP
• 2.2mtr height.
• 600(W) x 300(D) footprint.
• 150mm(W) cable duct options for
left and/or right sides of the 600(W)
x 300(D) footprint rack.
• Vertical rear mount pitch to "VU"
standard (= 1.2" or 30.48mm) and "SU"
standard (= 25mm). Vertical front mount pitch to "SU"
standard (= 25mm) or "U"
standard (= 1.75" or 44.45mm).
|
