Applications

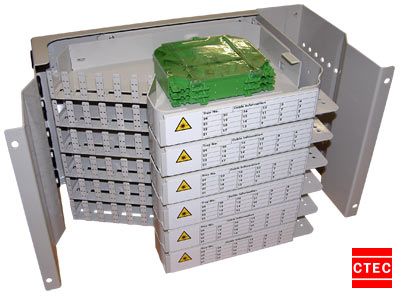

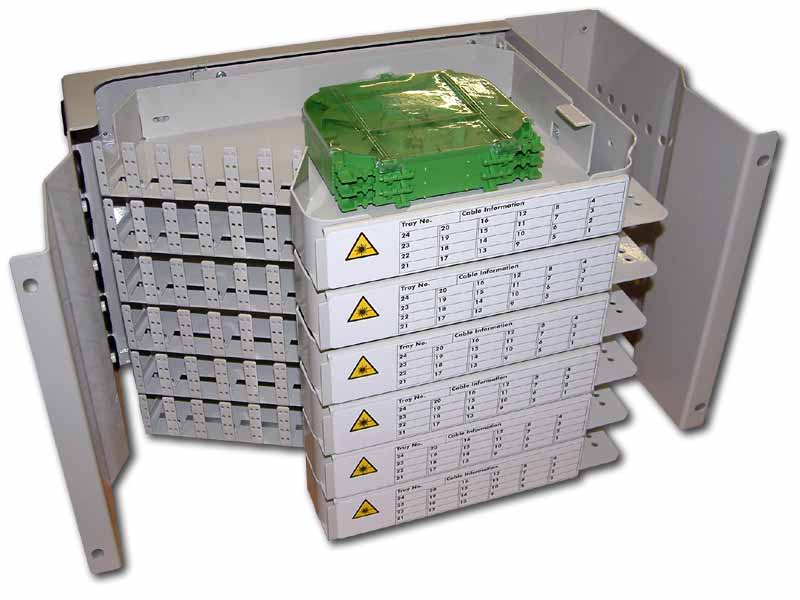

This Optical Distribution Frame (ODF) utilises a Hinging Tray design. It is ideally suited for racks that have front fitted mounts, in this case 19" (and note that CTEC also design and supply ETSI and MEP versions too).

Features
  •  High density termination system, for example 144 fibres in a 19" 6U space at 24 terminations per tray based on SC or E2000, or 96 fibres based on FC/PC or ST.
  •  Other connector types can be catered for using an interchangeable bulkheads.
  •  Modular hinge tray system, designed to ensure R30 bend radius is not compromised on and off the tray.
  •  Trays accommodate 12 fibre capacity multi-function cassettes (up to 3 cassettes) with built in hinge mechanism and self-closing latch system. The cassette provides a number of fibre management and retention mechanisms for ease of installation.
  •  Cassette made using UL94-V0 rated CYCOLAC VW300.
  •  Cable breakout and tube routing is via rear a Cable Breakout Units (CBU) of various tube capacities (not part of build, see other items), routed to the cassettes using Ø10mm conduit tubing, each CBU is provided with CTM anchorage.
  •  Exiting patchcords are routed through a front channel to the right where they are directed up or down the rack. A series of holes on the right hand side wall of the unit allow for cables to be securely affixed.
  •  A variety of backplane heights are available, with bespoke requirements catered for.
  •  The tray assemblies can also be installed into ETSI, TEP1E & MEP racks with suitable backplanes supplied by request.
