Internal Access Box- 12 Fibre

Applications

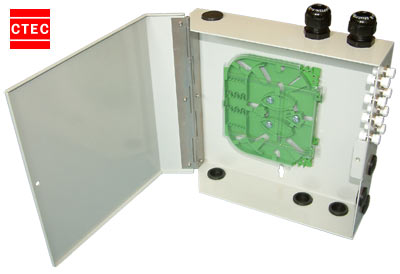

The 12 fibre Internal Access Box is an effective and flexible solution for spur fibre terminating, end of cable terminating or general through jointing requirements. This Internal Access Box is ideal for space critical applications requiring low fibre count solutions and with general access to the splice chamber. The box is coated to RAL 7035. Ideal for wall mounting in small spaces, with an easy access single door design, this box is suitable for rapid installation, for subscriber feed/access points, for jointing & spur applications or general terminating.

12 Fibre Internal Access BoxFeatures

  • Suitable for up to 12 fibre splicing, there is the option to utilise the bulkhead area for either 12 fibre SC & E2000 or 12 fibre FC & ST applications.
  • Uses a hinged UL94-V0 rated fibre splice cassette.
  • Cable entry via any of 3 cable entry/exit points on each of the 3 full faces.
  • Supplied preset with an interchangeable bulkhead plate to suit the chosen connector types at time of order, such as either SC & E2000 or FC/PC & ST.
  • Of lightweight construction, the fitted dimensions of the box are 245mm (W) x 236mm( H) x 68mm (D).
  • Depending on volume, custom livery can be prepared for clients.
