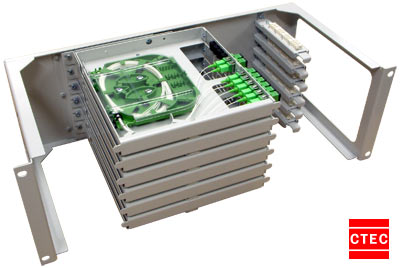

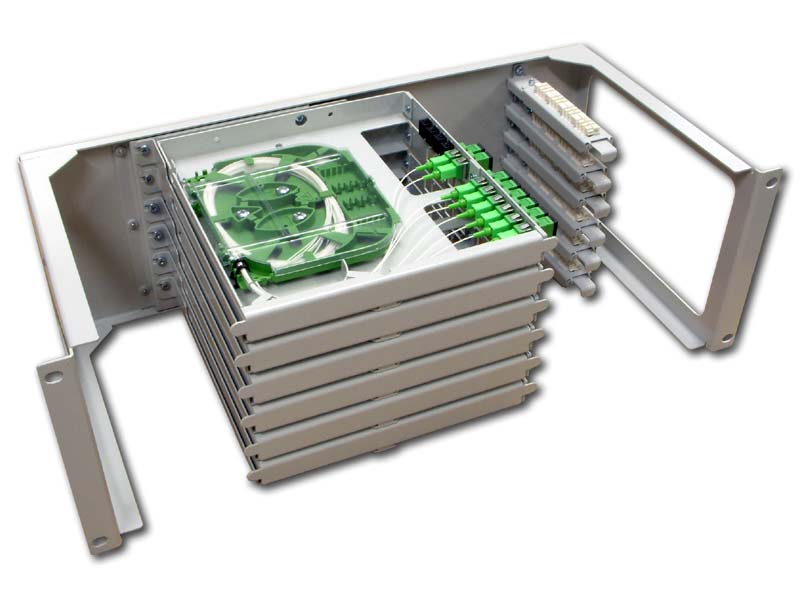

This Optical Distribution Frame (ODF)
utilises a Sliding Tray design, with optional Patchcord Managers
fitted to the right of the bulkheads, providing additional
patchcord support and management. This design is ideally suited
for racks that have front fitted mounts, in this case ETSI
(and note that CTEC also design and supply 19" and other
versions too).
• High density
termination system, for example 72 terminations in an ETSI
7SU space at 12 terminations per tray, based on SC, E2000,
LC, FC/PC or ST connectors.
Other connector types can be catered for using
interchangeable bulkheads.
• Each tray accommodates 1 cassette,
affixed in a non-hinging position.
Fibre entry onto the tray can be via either fibre tubing or 10mm flexible conduit,
routed from a centrally located Cable Breakout Unit
(CBU) or a Manifold (neither part of build, see other items).
Fibre tubes enter at the
rear left of the tray, and are secured to the cassette’s
barbed anchor points with 2 cable ties. The conduit is usually
push fitted into suitable conduit locators (10mm conduit)
on the tray. In some instances,
best practice principles require the combined
use of both forms of retention at the fibre entry point.
• Each tray slides forward to
a stop point to allow for both cassette and
connector access. The tray can also be disengaged from the support shelf for more
convenient for fibre splicing, routine maintenance,
etc. In the closed position, the tray is held in place at
2 magnet-tape points,
designed to provide positive retention.
• Cassette
manufactured using UL94-V0 rated CYCOLAC VW300.
• Exiting patchcords are routed
directly over vertically mounted storage mandrels
for full bend radius control.
• A variety of backplane heights
are available, with bespoke requirements
catered for.
• The tray assemblies can also
be installed into 19", TEP1E & MEP racks
with suitable backplanes supplied by request.
|
