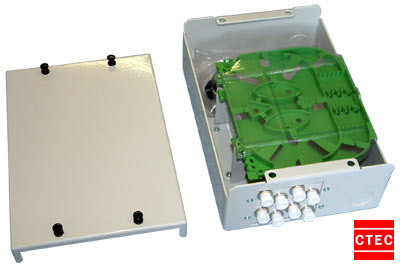

Compact Fibre Optic Wall Box- 8 Fibre Capacity


The 8 Fibre Compact Wall Box is an ideal solution for cost effective, space critical applications. The box is of sheet steel construction, and is coated to RAL 7035. It is ideal for uses such as wall mounting in small spaces, easy access LAN requirements, rapid installations or subscriber feed/access points.

Compact Wall Box- 8 FibreFeatures

  • Suitable for 8 fibre applications, with bulkhead options for either SC & E2000 or FC & ST adaptors.
  • Uses a hinged UL94-V0 rated fibre splice cassette.
  • Cable entry via either of 2 aligned cable entry/exit points, one top and one bottom (compression gland provided).
  • Supplied preset with 2 interchangeable bulkhead plates to suit the chosen connector types at time of order, such as either SC & E2000 or FC/PC & ST.
  • The output location of the bulkhead can be orientated either upwards or downwards, because the box features both a removable lid (via four turn fasteners), and three double-keyhole style mounting holes in the base.
  • All tube & fibre storage is possible beneath the hinging cassette owing to the compact nature of its design. The external fitted dimensions of the box are 150mm (W) x 210mm (H) x 70mm (D).
  • Depending on volume, custom livery can be prepared for clients.
