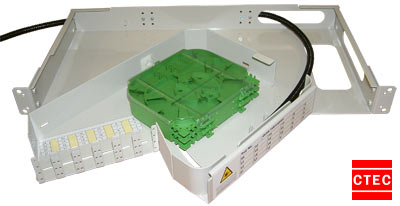

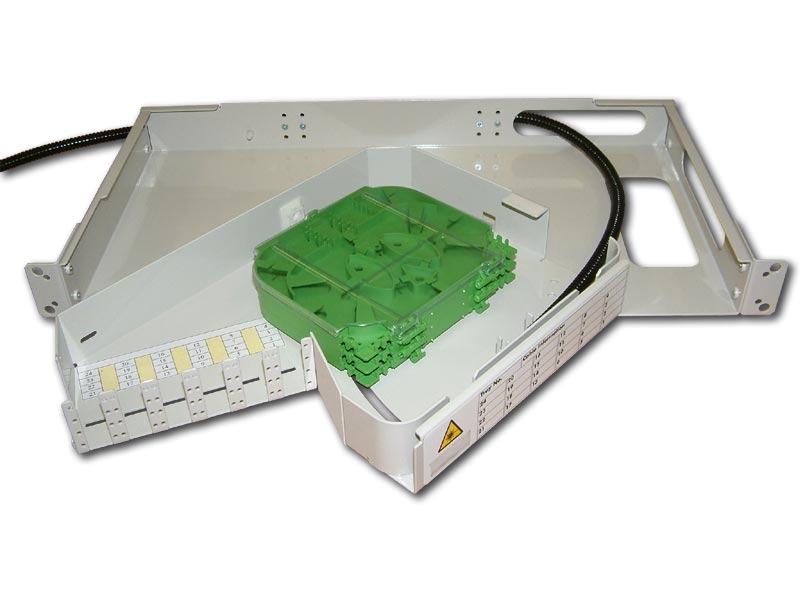

The Fibre Craft Tray is for front and/or
rear 19" and ETSI applications (other rack types can
be catered for by request). It takes various connector types
via interchangeable bulkheads, including SC or E2000 (24 fibre
capacity) and FC/PC or ST (16 fibre capacity). It is particularly
suited for restricted rack space applications, whilst providing
many of the fibre management features found in our mainstream
Optical Distribution Frames.
• 19” and ETSI
front and rear mountable (other rack types by request)
• Various connector types, including FC/PC
or ST (24 fibre) and SC or E2000
(16 fibre)
• Hinged tray system, ensuring min R30 bend
radius control
• Optical Splice Trays (up to 2) contain
12 fibre capacity Multi Function Cassettes
• Multi Function Cassettes are manufactured
using UL94-V0 rated CYCOLAC® VW300
• Cable breakout and routing via a rear
Cable Clip System using Ø10mm
conduit
• On tray routing is via highly flexible
crush resistant Portex type tubing.
• Patchcords are routed left to right through
a front concealed routing channel.
|
