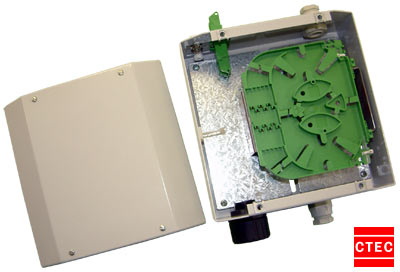

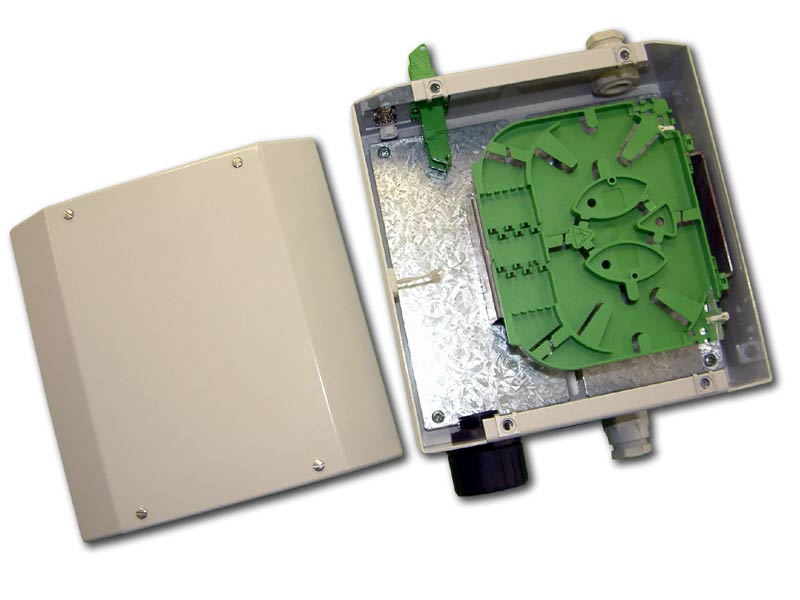

The Small Wall Mount Box is an ideal
solution for cost effective, space critical applications requiring
low fibre count solutions. In plain or optional livery format,
it is applicable for:
• Wall mounting in small spaces
• Easy access LAN requirements
• Rapid installations
• Subscriber feed/access points
• Combination of use for jointing
only, spur applications (4 fibre spur to bulkheads),
Multi-cable breakouts
Suitable for up to 12 fibre splicing,
there is the option to utilise the bulkhead area for either
4 fibre SC & E2000 or FC & ST output. Using a hinged
UL94-V0 rated fibre management cassette, the Small Wall Mount
Box has three cable entry/exit points on one face, and one
on the opposite face accompanying the bulkhead positions.
There are 2 interchangeable bulkhead plates to suit the chosen
connector types of either SC & E2000 or FC/PC & ST.
The output location of the bulkheads can be orientated either
upwards or downwards, because the box features both a removable
lid (via four ¼ turn fasteners), and double-keyhole
style mounting holes in the base.
Of lightweight construction, all tube & fibre storage
is possible beneath the hinging cassette owing to the compact
nature of its design. The external fitted dimensions of the
box are 200mm(W) * 200mm(H) * 80mm(D). Depending on volumes,
custom livery can be prepared for clients.
|
