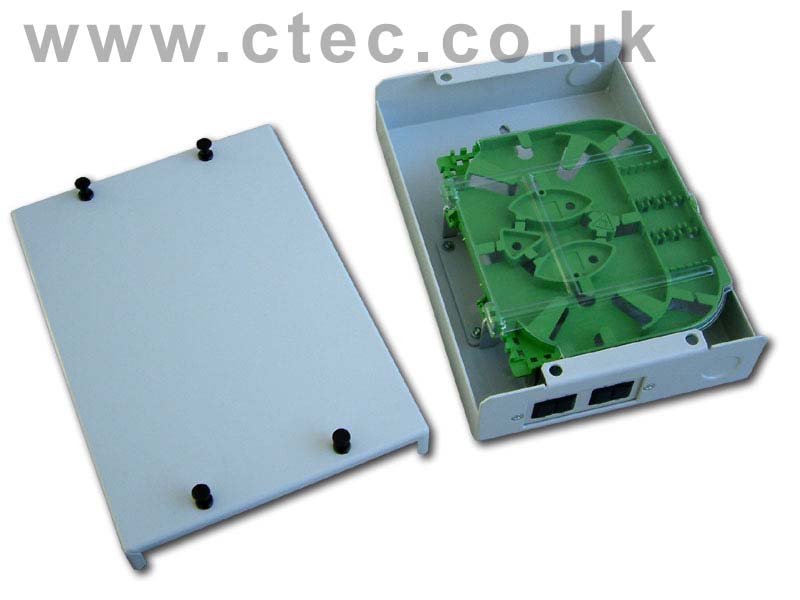

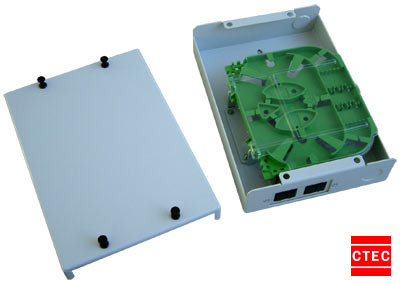

The 4 Fibre Compact Wall Box is an ideal
solution for cost effective, space critical applications.
In plain or optional livery format, it is applicable for:
• Wall mounting in small spaces
• Easy access LAN requirements
• Rapid installations
• Subscriber feed/access points
Suitable for either 4 fibre SC &
E2000 or FC & ST applications. Using a hinged UL94-V0
rated fibre management cassette, the 4 Fibre Compact Wall
Box has two aligned cable entry/exit points, one top and one
bottom (compression gland provided).
There is 1 interchangeable bulkhead plate to suit the chosen
connector types of either SC & E2000 or FC/PC & ST.
The output location of the bulkhead can be orientated either
upwards or downwards, because the box features both a removable
lid (via four ¼ turn fasteners), and three double-keyhole
style mounting holes in the base.
Of lightweight construction, all tube & fibre storage
is possible beneath the hinging cassette owing to the compact
nature of its design. The external fitted dimensions of the
box are 150mm(W) * 210mm(H) * 45mm(D). Depending on volume,
custom livery can be prepared for clients.
|
