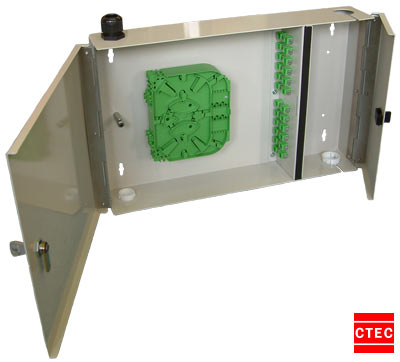

Our 24 fibre Double Door Demarcation
Box is an ideal solution for client side/end user access,
whilst retaining security and control over the fibre splicing
& storage chamber. In plain or optional livery format,
it is applicable for:
• Wall mounting for client side/end
user access
• A quick and secure demarcation
point for patch access
• Various connector types catered
for, including SC, FC/PC, ST, E2000, LC and
more.
Suitable for up to 24 fibre splicing
and pigtail termination, the splice & cable management
chamber is lockable, thus presenting the client/end user with
simple access to the connector termination points for normal
use.

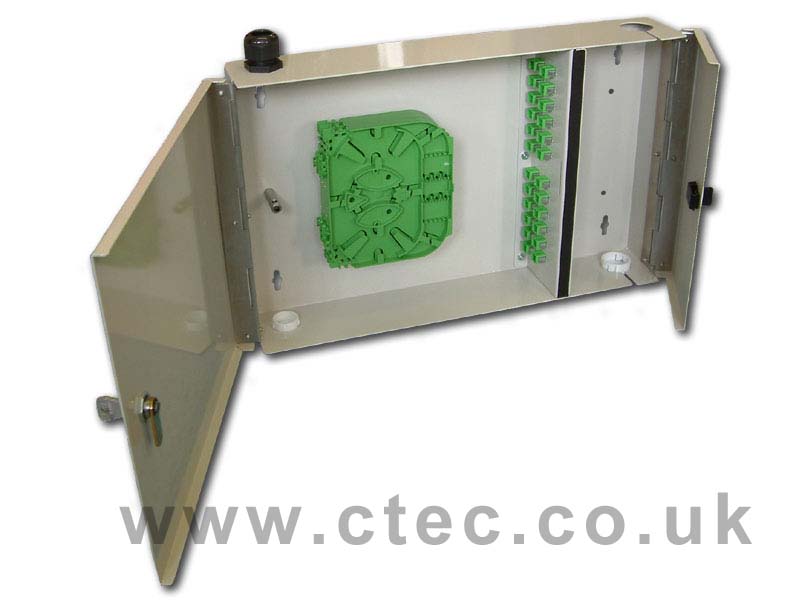

Using a hinged UL94-V0 rated fibre
management cassette, the Double Door Demarcation Box has one
cable entry point top and bottom.
Aligned with both entry points is a central tension member
clamp. Fibre tubes are simply and easily routed to the cassettes
within the large splicing area. Once spliced to suitable pigtails,
these are then connected to the adaptors fitted to the dividing
bulkhead, completing the installation.
The box is designed to mount with the bulkhead facing either
left or right, and the external fitted dimensions of the box
are 420mm(W) * 260mm(H) * 77.5mm(D). Depending on volumes,
custom livery can be prepared for clients.
|
