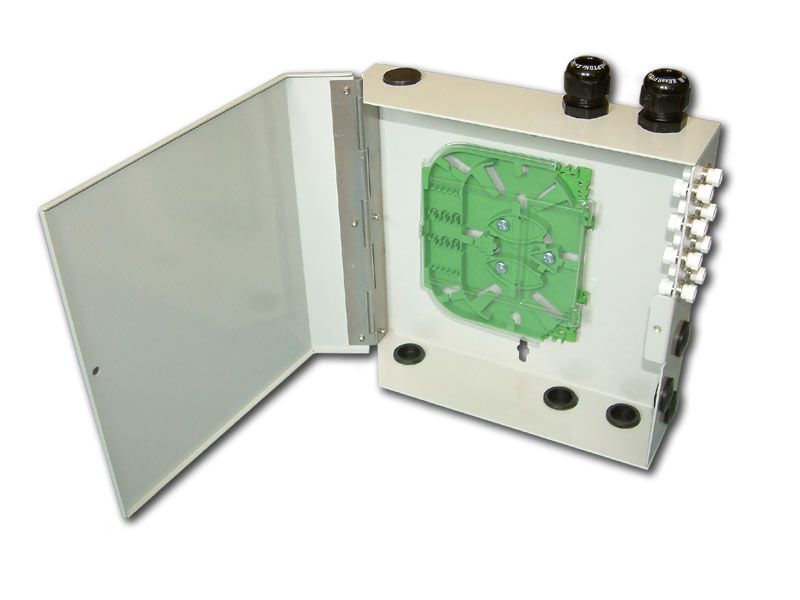

The 12 fibre Internal Access Box is an
effective and flexible solution for spur fibre terminating,
end of cable terminating or general through jointing requirements.
This Internal Access Box is ideal for space critical applications
requiring low fibre count solutions and with general access
to the splice chamber. In plain or optional livery format,
it is applicable for:
• Wall mounting in small spaces
• Easy access single door design
• Rapid installation
• Subscriber feed/access points
• Combination of use for jointing
only, spur applications or general terminating
Suitable for up to 12 fibre splicing,
there is the option to utilise the bulkhead area for either
12 fibre SC & E2000 or 12 fibre FC & ST applications.
Using a fixed UL94-V0 rated fibre management cassette, the
12 fibre Internal Access Box has three cable entry/exit points
on each of three faces.
The bulkhead plate is interchangeable to suit the chosen connector
types of either SC & E2000 or FC/PC & ST. Of lightweight
construction, the fitted dimensions of the box are 245mm(W)
* 236mm(H) * 68mm(D). Depending on volumes, custom livery
can be prepared for clients.
|
