Neutrik OpticalCon Duo Products

General Information

Neutrik OpticalCon ProductsThe Neutrik OpticalCON Duo system is based on LC duplex connectors, but it guarantees a safe, dust protected and rugged connection. It is compatible with conventional LC connectors, offering the choice of using conventional LC cables or the OpticalCON Duo cable assemblies for mobile applications.

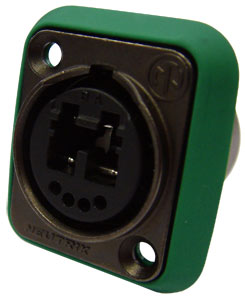

The OpticalCON DUO chassis connector acts as a "feed-through" allowing simplified installations by connecting a conventional LC duplex on the rear. It is built into a standard D size shell* and features an automatic sealing cover for maximum dust and dirt protection, plus a push-pull locking mechanism for safe connection. A coloured flange seal is included to identify the fibre and/or polish type. Illustrated is the NO2-4FDW chassis connector to suit singlemode APC applications.

CTEC can provide a wide variety of metalwork configurations to accommodate OpticalCON DUO chassis connectors.

*For these OpticalCON Duo housings, Neutrik requires that the body clearance hole is 23.8mm rather than 23.6mm. The usual screw location holes remain the same. If in doubt, contact CTEC.
