Fibre Optic Patchcords and Pigtails

General Information

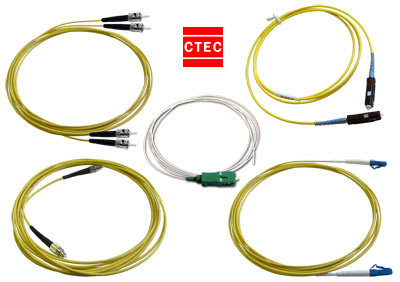

Fibre Optic Cable AssembliesCTEC fibre optic patchcords and pigtails are suitable for equipment jumper cord, cross-connect, splice-to-interface and all optical distribution frame bulkhead connections. All CTEC patchcords and pigtails can be manufactured using various cables types (simples or duplex), including PVC, Riser, Plenum, OFNR, OFNP & LSZH grades.

Our typical ruggedised cable range for patchcords includes 2.8mm, 2.2mm and 2.0mm diameter cables. For most pigtail applications, we utilise 0.9mm buffered fibre as standard, but will also supply ruggedised pigtails where stipulated. All of our patchcords and pigtails are factory assembled and tested to ensure that they encompass common industry standards, and exhibit low insertion & return losses.

Options

  • FC, SC, E2000, LC, ST, MU, MTRJ, MPO, DIN connector types.
  • PC, UPC & APC polish options, subject to connector type.
  • 9/125m, 50/125m and 62.5/125m fibre sizes.
  • 2.8mm, 2.2mm, 2.0mm ruggedised cables.
  • Simplex or duplex cable construction.
  • 0.9mm buffered fibre.

Features (subject to connector type)

  • Push-pull latching mechanism.
  • Non-optical disconnect performance.
  • High quality zirconia ceramic ferrules.
  • Bellcore boot.

Applications

  • Telecommunications or Datacoms.
  • Computer networks.
  • CATV networks.
  • Offshore, Power Generation, Oil & Gas.
  • Railways.
  • Active device termination.
  • Instrumentation.

Contact CTEC with your specific requirements, we will be happy to assist and help determine exactly what it is you require, and will quote accordingly.
