'FibreOptics'E2000 Adaptor
Overview

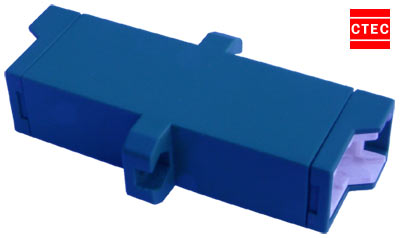

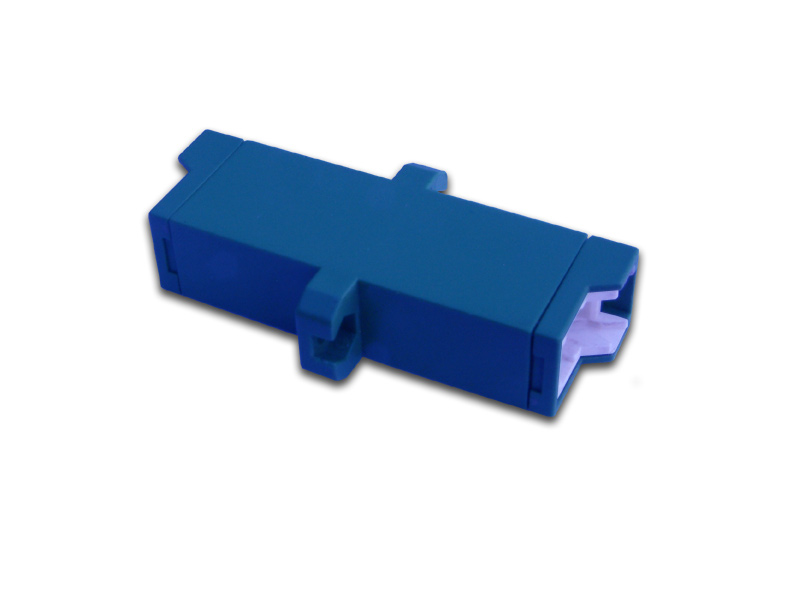

This E2000 PC Adaptor forms part of the high performance E2000 product range supplied by CTEC. Features include internal shutter protection, superb insertion & return loss characteristics, and the highest quality parts we can possibly supply.
Performance Criteria
| Parameters | E2000/PC | E2000/UPC |
|---|---|---|
| Nominal Fibre O/D | 125µm ± 0.2µm | |
| Insertion Loss (Typical) | 0.2dB | |
| Insertion Loss (Maximum) | 0.4dB | |
| Return Loss (Typical) | -50dB | -55dB |
| Mating Durability (500 cycles) | <=0.2dB | |
| Temperature Stability | <=0.3dB | |
| Operating Temperature °C | -40°C to +80°C | |
| Storage Temperature °C | -40°C to +85°C | |
